Making conditional formatting more interactive and more automatic

Introduction

When we entered our threshold value into a cell, rather than including it directly within the conditional format rule formula, we mentioned that one advantage would be the ability to easily change the value in the cell, or to calculate the value dynamically using a formula. We are going to look in more detail at making use of these capabilities.

Changing the threshold value

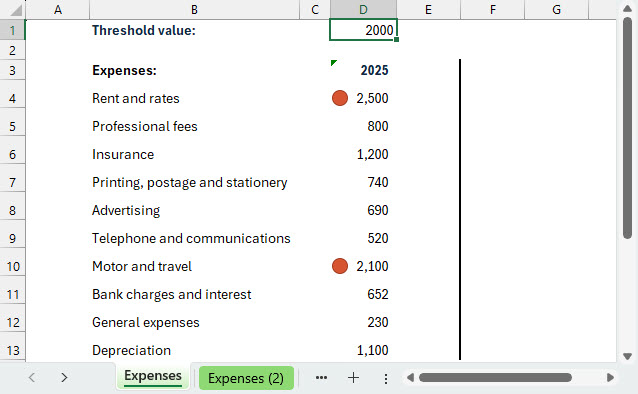

First of all, we can see that just entering a different value in cell D1 causes the conditional formatting rule to apply the highlight circles based on the new threshold value:

We could make this even easier for our user by using an Excel form control to allow them to set the threshold value more interactively.

We can use the Developer Ribbon tab, Controls group, Insert dropdown to choose a ‘Spin Button (Form Control)’. Note that the Developer Ribbon tab isn’t displayed by default so, if you can’t see the tab, you might need to right-click anywhere in the Ribbon and choose ‘Customise the Ribbon’. This will allow you to tick the Developer Ribbon in order to add it to the list of Ribbon tabs displayed.

Here we have inserted our Spin Button form control next to our threshold value. We have increased the row height to allow enough room to comfortably display the control. We can then right-click on the control and choose ‘Format Control’. This allows us to set a Minimum value and a Maximum value and also to set the Incremental change value. We have set the Incremental change to 100 so that when a user clicks on the control the value in the linked cell will go up or down by 100 each time. Finally, we set the Cell link cell to D1:

Our user can now just click on the appropriate part of the control to set the threshold value and see the effect on the conditional formatting highlights as the value changes.

Using a formula

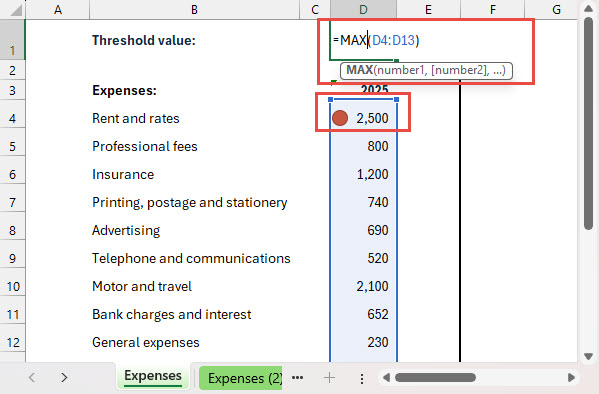

So far, we have manually set the threshold value, either by entering it directly or by using a form control. We can also use a formula in cell D1 to base our threshold value on a calculation. We’ll look at a very simple example. We could use the MAX() function to find the highest value, or equal highest values, in our range of expense value cells. Entering this in our threshold cell would ensure that our threshold value is equal to our highest value and so our icon highlight will only be applied to that cell (or cells if there is more than one equal maximum value):

Conclusion

Extending the capabilities of conditional formatting in Excel need not just be about the conditional formatting rule itself. By basing our rule on a the contents of a cell, or multiple cells, we can make it much easier for the user to increase the usefulness and impact of their reports by tailoring the conditional formatting to their own requirements, or by enabling it to adapt to changing values automatically by using a formula to calculate the relevant value or values.

Next time, we will continue to explore ways of making conditional formatting more useful.
